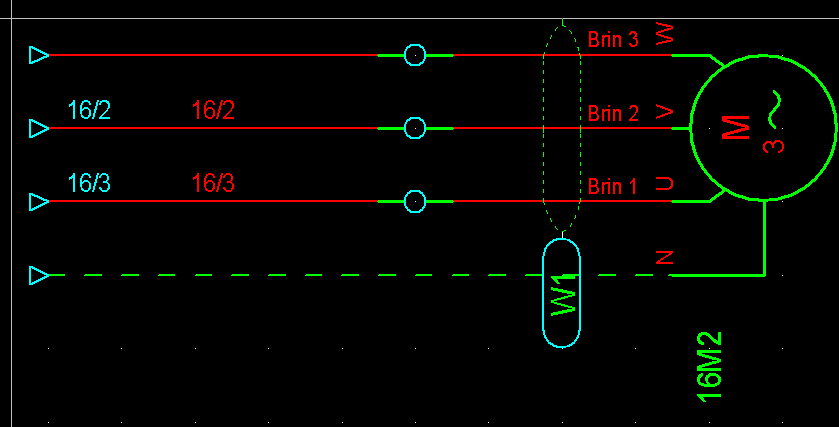

Impossible to represent on the diagram a cable with 3 strands + earth

The ground strand is not shown because the equipotential category is not GROUND, so it is not connected to a symbol

+

SEE Electrical



The ground strand is not shown because the equipotential category is not GROUND, so it is not connected to a symbol

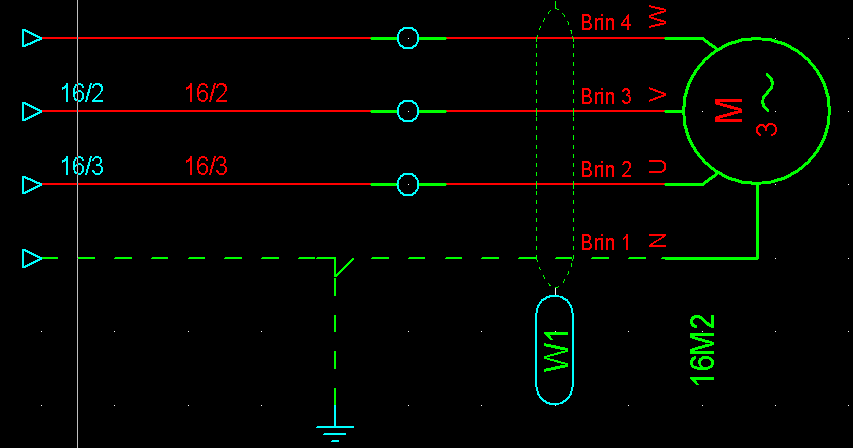

Solution:

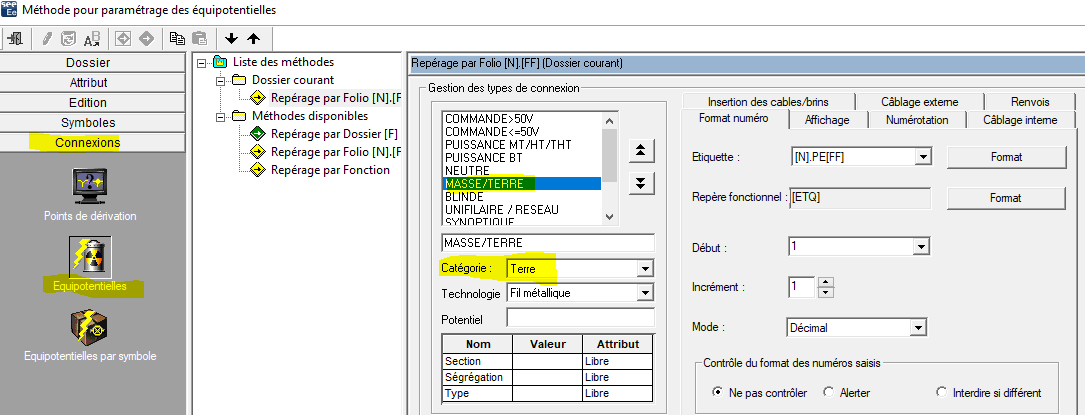

1-You have to go to Method/ Connections / Equipotential method, select the MASS / GROUND type and modify the category by choosing GROUND



2-connect an earth symbol to the GROUND / EARTH wire
3-Insert the cable



Case encountered: ACB Company
