3D Panel+ Detailed Features

Home News › 3D Panel+ Detailed Features

Benefit from complete toolset for optimal design

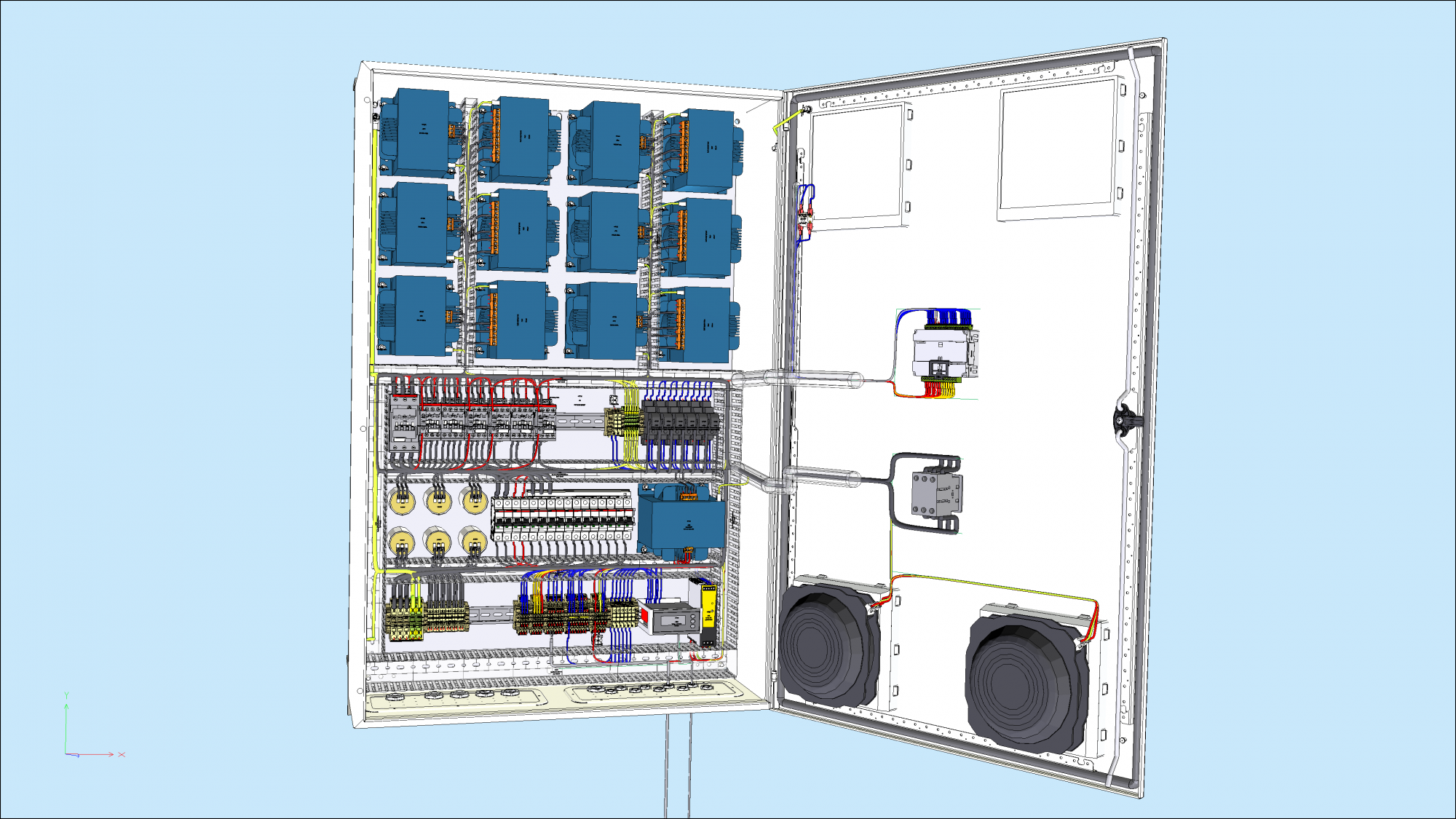

Screen shot of SEE Electrical 3d Panel+

Electrically enabled 3D Engine

Intelligent snapping system for components and enclosures
Wire, net, cable routing and optimal length management algorithm
Mechanical collision and Channel filling check
Access over 25 000 3D enabled references
60 seconds 3D symbol creation wizard
STEP import/export with mechanical CAD software

Ready for manufacturing

Mechanical processing data export
Wire processing data export
Automatic BOM generation
Industry 4.0 ready: CNC, Wire processing and duct and rail cutting machine data export

Flexible Solution

Dynamic data exchange between SEE Electrical or SEE Electrical Expert in Module version
Open world project connection system (Eplan, Excel, SEE Electrical, SEE Electrical Expert) in Standalone version

Hardware requirements

Minimum Requirements

64 bit Windows 8.1 Home, Professional or newer
10 GB of hard disk space for use of the standard 3D symbol library
25GB of hard disk space for use with the entire library of 3D symbols available today (this requirement may increase with time)

Recommended Hardware Specification

Processor Intel® Core™ i7 >3 Ghz or equivalent
NVIDIA GeForce® GTX Graphics Card with 4GB memory or equivalent
Memory (RAM) >16 GB
